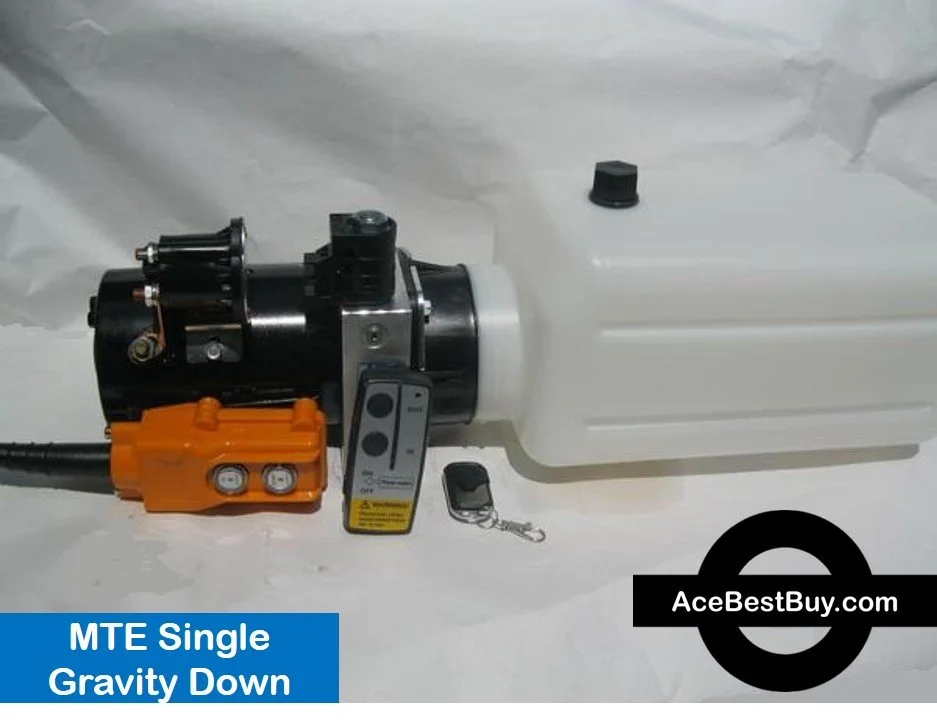

Single Acting Pump (Power Up/Gravity Down)

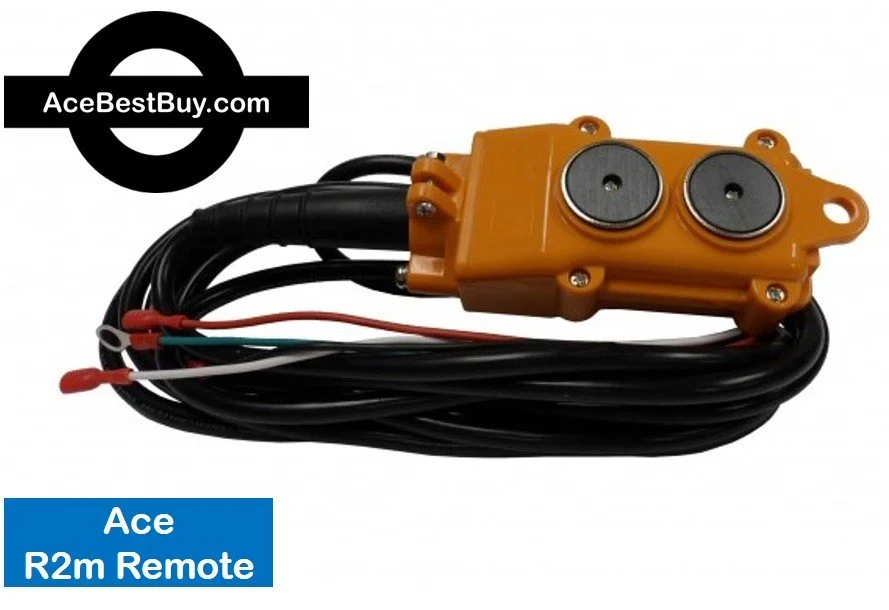

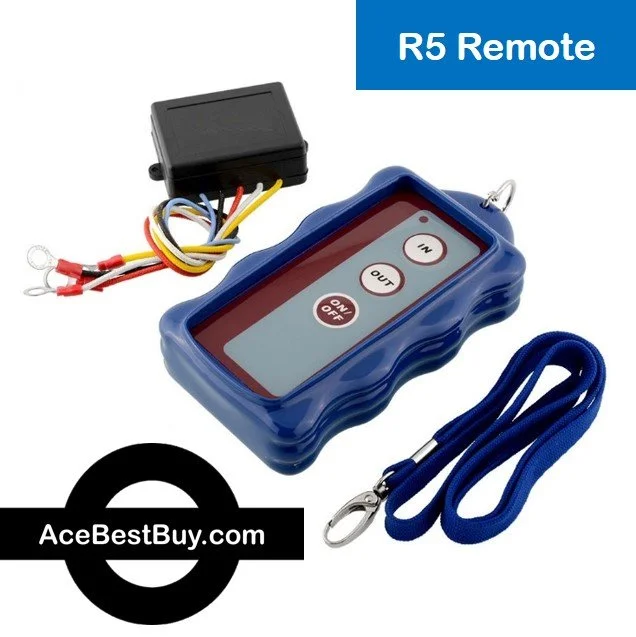

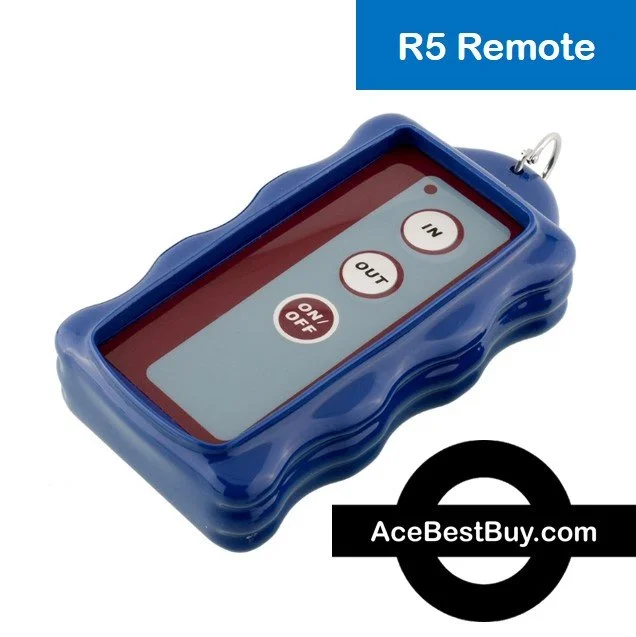

CHOOSE: No remote; 20 foot wired remote; Wireless Remote; or Both wired & wireless

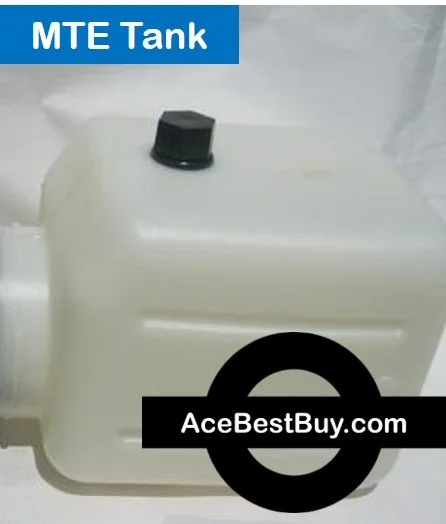

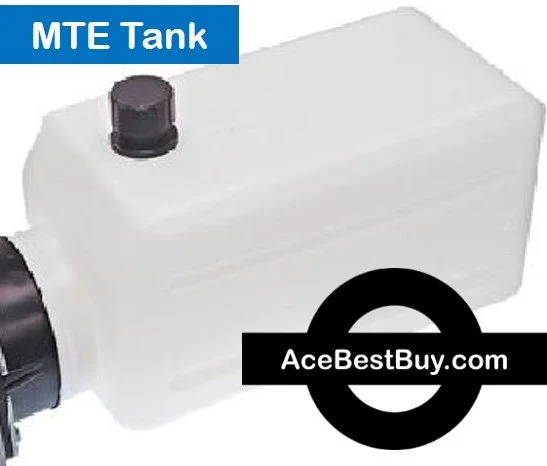

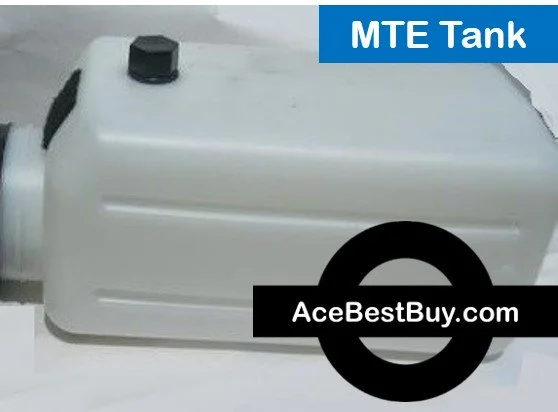

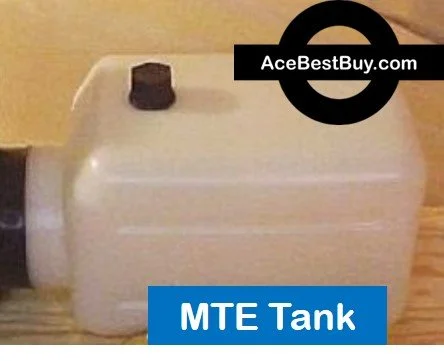

MTE Three (3) POLY TANK SIZE OPTIONS - YOU CHOOSE
#117. 1.1 Gallons 19"L x 6.7"W x 7.5"H
#121. 1.8 Gallons 24"L x 6.7"W x 7.5"H
#127. 4.0 Gallons 39"L x 6.7"W x 7.5"H
Motor & Pump: 12 Volt DC POWER UNIT, HYDRAULIC CIRCUIT: for SINGLE-ACTING CYLINDER, SET AT 3200 PSI (ADJUSTABLE FROM 1750 PSI TO 3200 PSI), Approx 1.9 gpm, PORT IS #6 SAE O-RING, HEAVY-DUTY BALL-BEARING MOTOR (bearings on BOTH ends), two 3/8" bolt holes for mounting.
Mounting: Horizontal.
Shipping: FREE SHIPPING to 48 states – email or call for quote to AK, HI, Canada.
MTE makes superior quality industrial pumps that have a very long, trouble free life. Made in USA.
Single Acting Pump (Power Up/Gravity Down)
CHOOSE: No remote; 20 foot wired remote; Wireless Remote; or Both wired & wireless
MTE Three (3) POLY TANK SIZE OPTIONS - YOU CHOOSE
#117. 1.1 Gallons 19"L x 6.7"W x 7.5"H
#121. 1.8 Gallons 24"L x 6.7"W x 7.5"H
#127. 4.0 Gallons 39"L x 6.7"W x 7.5"H
Motor & Pump: 12 Volt DC POWER UNIT, HYDRAULIC CIRCUIT: for SINGLE-ACTING CYLINDER, SET AT 3200 PSI (ADJUSTABLE FROM 1750 PSI TO 3200 PSI), Approx 1.9 gpm, PORT IS #6 SAE O-RING, HEAVY-DUTY BALL-BEARING MOTOR (bearings on BOTH ends), two 3/8" bolt holes for mounting.
Mounting: Horizontal.
Shipping: FREE SHIPPING to 48 states – email or call for quote to AK, HI, Canada.
MTE makes superior quality industrial pumps that have a very long, trouble free life. Made in USA.
